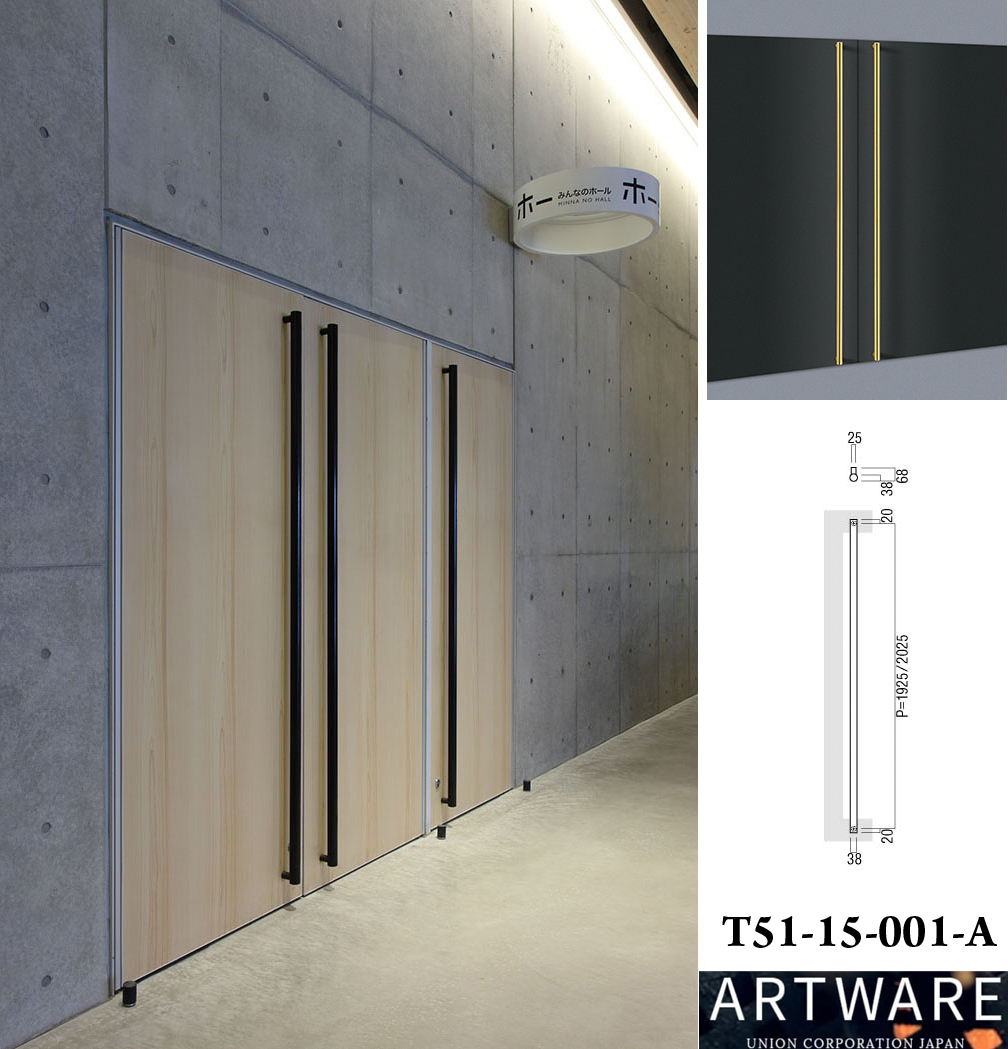

TAY NẮM CỬA CAO CẤP T51-15-001-A

Liên hệ

  • Mã sản phẩm
  • Nhà sản xuất :
  • Bảo hành :
  • Tình trạng:
  • T51-15-001-A
  • Made in Japan
  • 36 tháng
  • Đặt hàng
Số lượng: Mua hàng
Product number T51-15-001-A
Major division [Neoism] Architectural Door Handles
Middle division Bar Type
New product
Design No. T51
Patent
Specification Brass, Polished
Size order size　L=min.1700 max.2100
Attachment pitch P1660～2060
Additional Information 1 Used for frame・flush doors. (Can be used for glass doors.)
Additional Information 2
Option Ready-made items are also available. T51-15-001-P1925・T51-15-001-P2025
Feature
Construction mounting screw M8
mounting hole diameter 10mm / Can be used for glass doors. diameter 16mm
Special note Exclusive parts are prepared for attaching the Door Handle to a door with a cosmetic sheet design (Di-Noc film, etc.). Please inquire for details.
Using the 4 mount type (E type) is recommended if the door mass exceeds 65kg.
